刘许纯 ¹，张家浩 ¹，朱威廉 ¹, 肖琪 ¹

1.华侨大学建筑学院，福建省城乡建筑遗产保护技术重点实验室，福建省厦门市集美区集美大道 668 号，邮编:361021；电子邮箱： liuxuchun0525@stu.hqu.edu.cn；zhangjh@hqu.edu.cn

摘 要：HBIM 技术在建筑遗产保护中广泛运用，极大推动了历史建筑的数字化保护。闽南传统大厝作为一种重要的地域性建筑遗产， 在数字化保护进程中，没有系统地建立属于闽南传统大厝的建筑信息模型库。本文将以构件为最小单元，以构件库为研究对象，通过 相关文献整理和实地调查，运用信息化测绘技术和 BIM 技术，建立闽南传统大厝门窗构件库。在文中提出了闽南传统大厝门窗构件信 息分类及编码的实现方法，依据构件参数的特点，完成构件库的参数化设计，记录门窗构件的材料、工艺等属性信息。

关键词：闽南传统大厝；HBIM；构件库；参数化；信息管理

Abstract: HBIM technology is widely used in the protection of architectural heritage, which greatly promotes the digital protection of historical buildings. Traditional Dacuo in southern Fujian is an important regional architectural heritage. In the process of digital protection, there is no systematic building information model database of traditional Dacuo in southern Fujian. This paper will take c omponent as the minimum unit, component library as the research object, through the relevant literature collation and field investigat ion, the use of information surveying and mapping technology and BIM technology, the establishment of southern Fujian traditional Dacuo door and window component library. In this paper, the realization method of information classification and coding of tradition al Dacuo door and window components in southern Fujian is proposed. According to the characteristics of component parameters, th e parametric design of component library is completed, and the corresponding materials and manufacturing processes of door and wi ndow components are recorded.

Keywords: Southern Fujian traditional big house; HBIM; component repository; information management

湖南湘潭会议汇报现场（刘许纯）

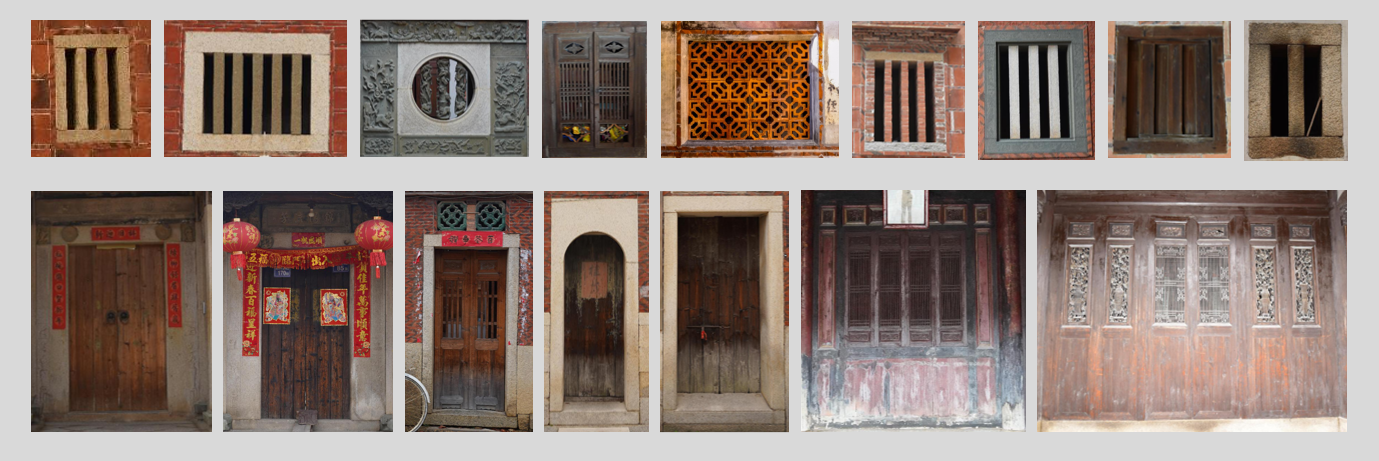

田野调查门窗构件照片记录

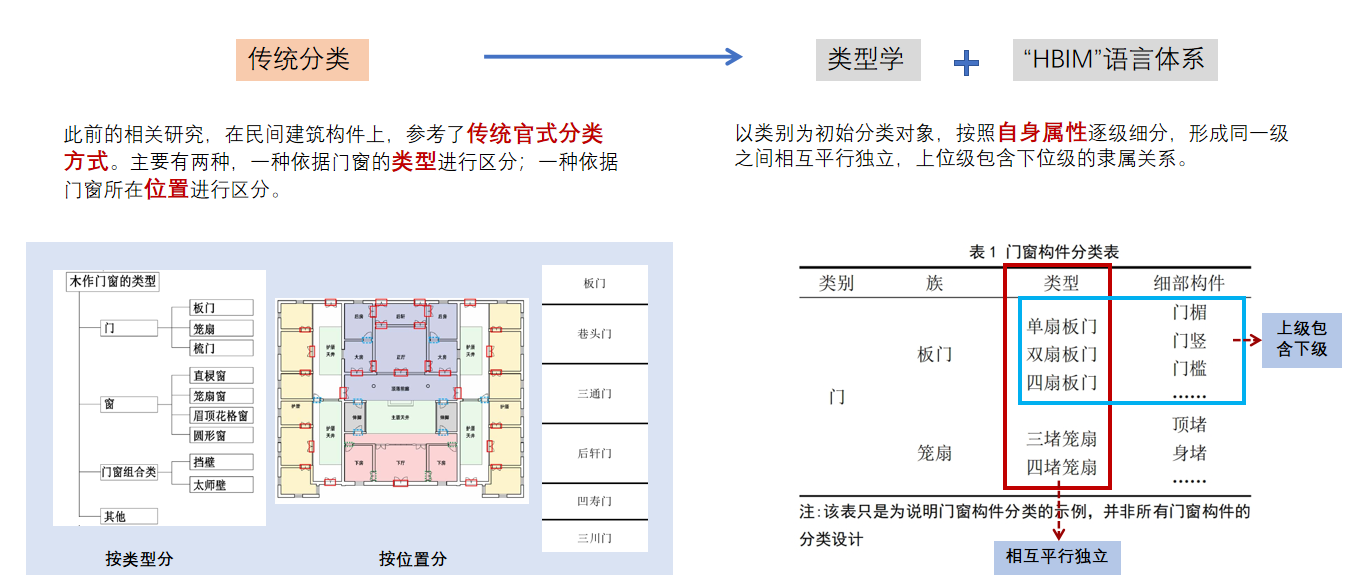

门窗构件族库分类规划设计

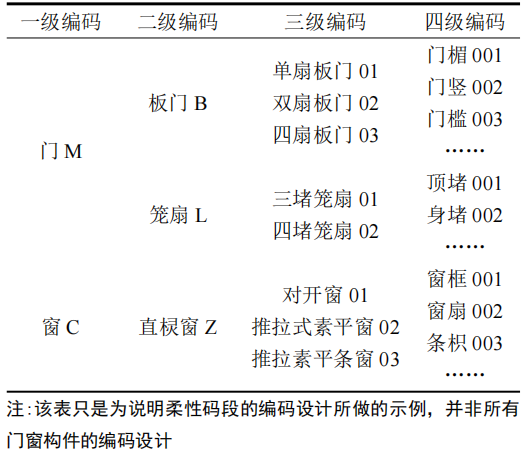

门窗构件编码表

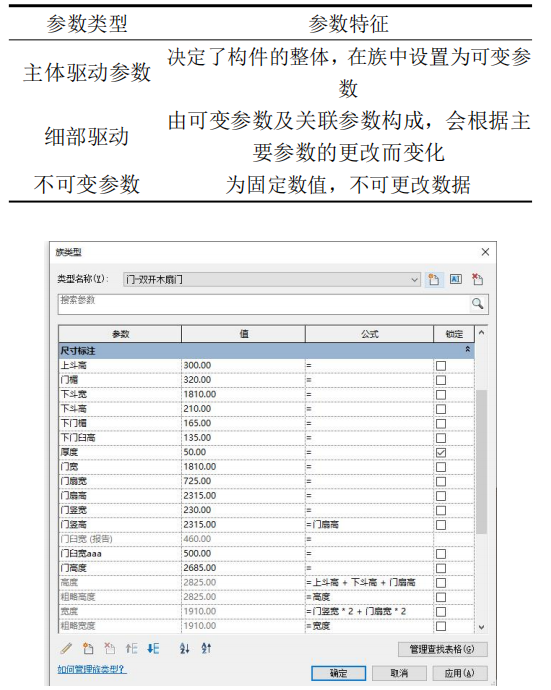

构件主体参数设置示例

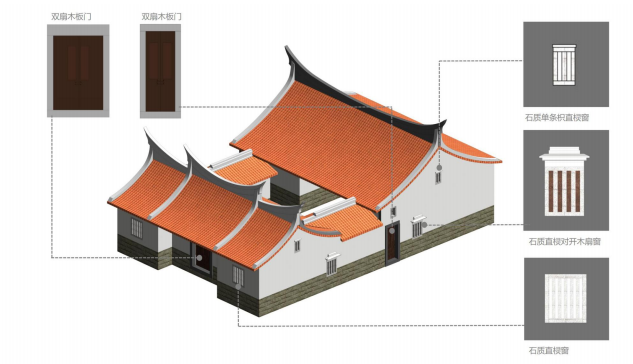

门窗构件库在实例中的运用
